Product Name: Ampoule Bottle Washing, Drying, Filling and Sealing Linkage Production Line Product Code: 1083318124087496704

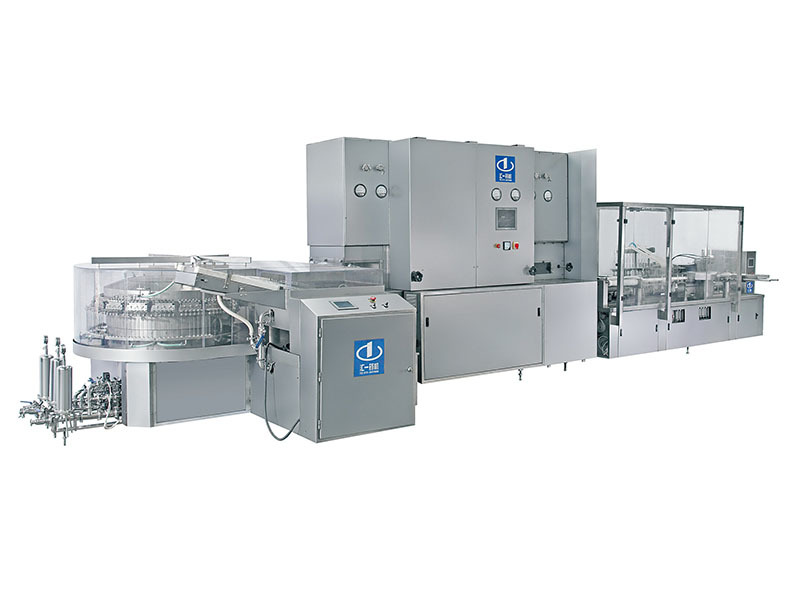

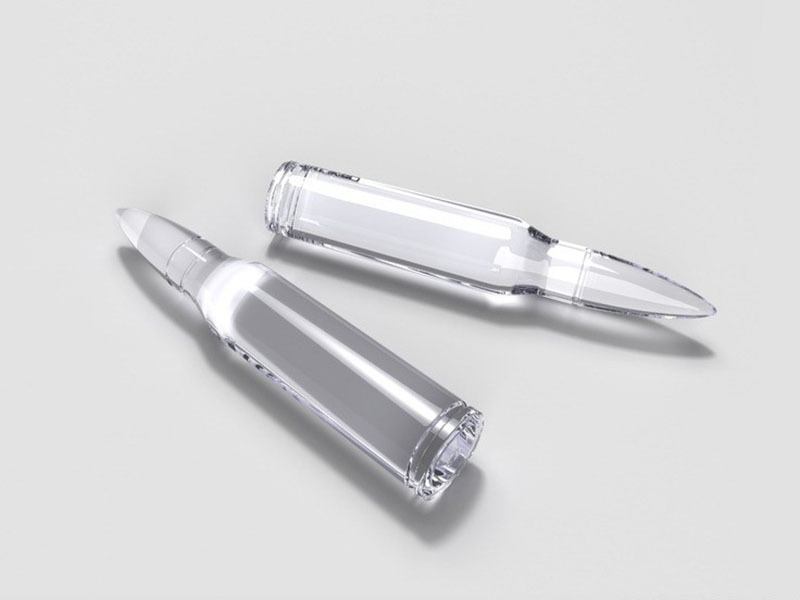

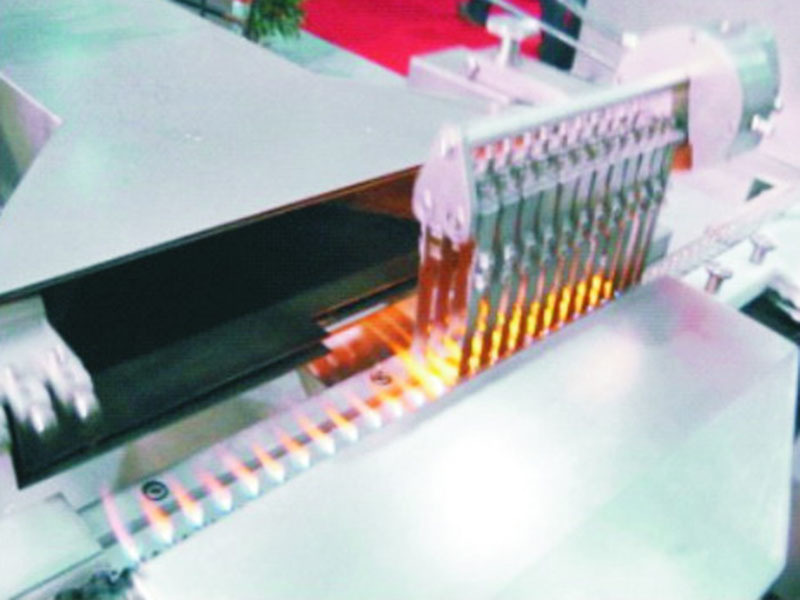

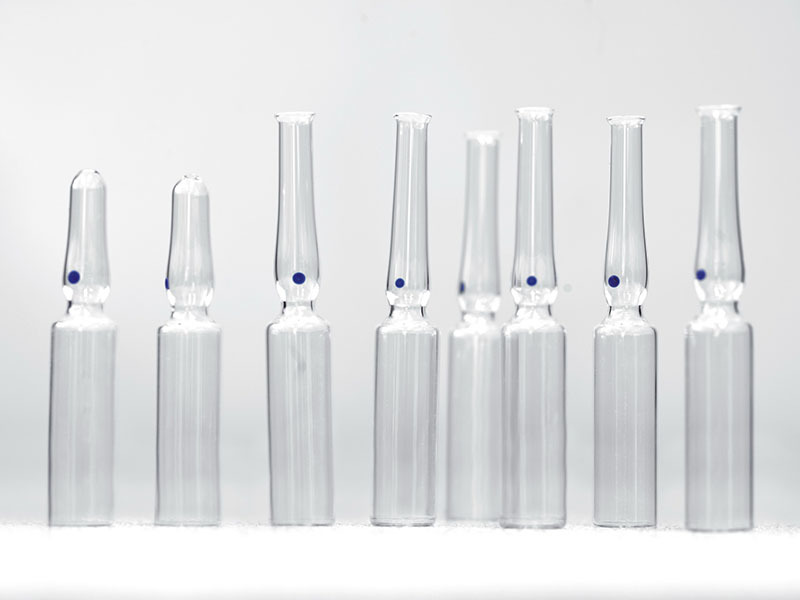

The ampoule bottle washing, drying, filling and sealing linkage production line consists of three single machines: CLQ ultrasonic vertical cleaning machine, RSM sterilization and drying machine, and AGF vertical filling and sealing machine. It is divided into three working areas: cleaning, drying and sterilization, and filling and sealing. The units can be produced in linkage or used alone. The equipment is suitable for the production of 1-20ml ampoules; The linkage line can automatically complete multiple processes such as ampoule watering, ultrasonic washing, blowing compressed air, flushing circulating water, blowing compressed air, flushing fresh water, blowing compressed air, preheating, high-temperature sterilization, cooling, pre inflation, drug filling, post inflation, wire drawing and sealing.
Performance characteristics:
1. The vertical bottle washing machine adopts a mechanical arm to clamp bottles, suitable for various specifications of ampoules;
2. The bottle cleaning adopts the method of reciprocating tracking and insertion of water vapor spray needle, utilizing the principle of ultrasonic cleaning and alternating water vapor spray flushing, which has good cleaning effect and saves energy; The equipment is equipped with a needle holder anti shake device to ensure the accuracy of needle insertion, low bottle breakage rate, and wide versatility.
3. The sterilization dryer is a tunnel type structure, divided into three parts: preheating zone, high-temperature sterilization zone, and cooling zone. Adopting hot air circulation heating, the temperature is uniform and energy-saving.
4. The sterilization dryer can be equipped with a circulating water cooling device and an automatic pressure balance adjustment system, which does not consume room air volume, reduces the risk of pressure imbalance between the room and the oven, and has a good cooling effect.
5. The sterilization dryer belt can be equipped with ultrasonic and CIP online cleaning systems, and the oven can be subjected to high-pressure water flushing from all directions and angles.

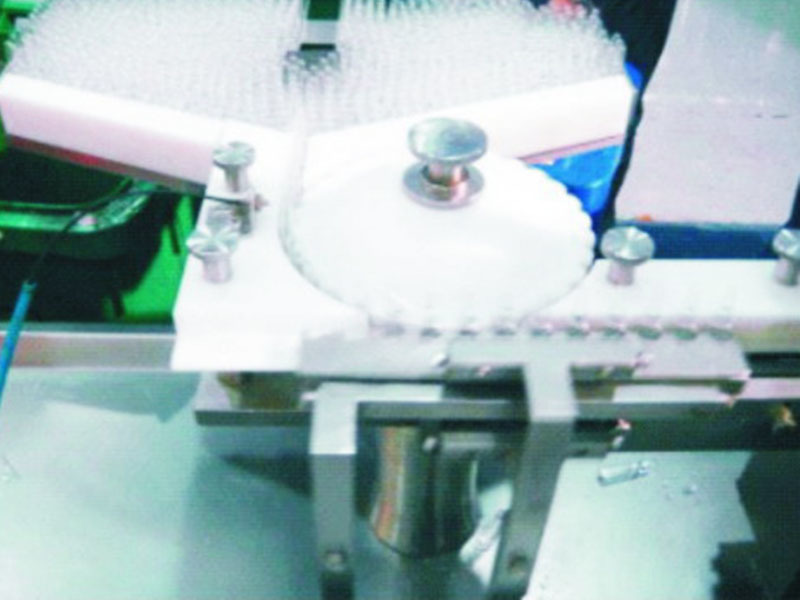

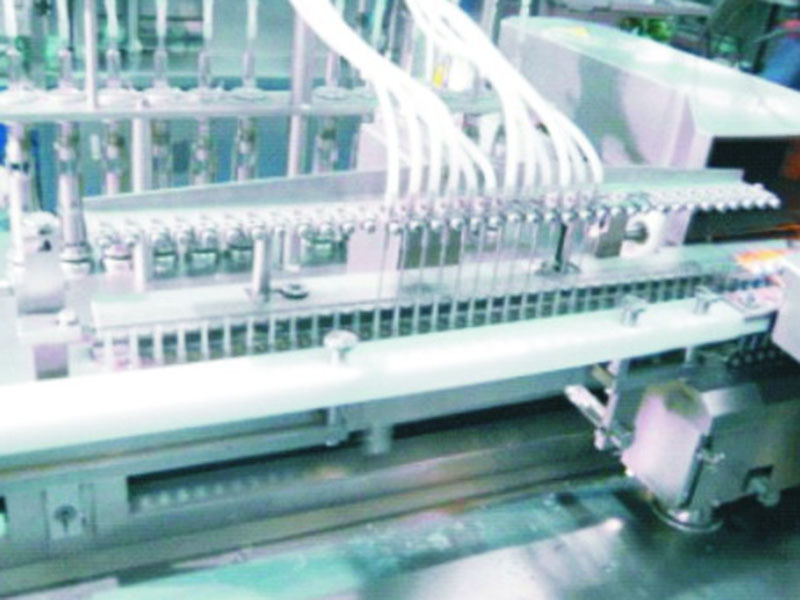

6. The filling and sealing machine adopts a uniform wheel for bottle feeding, with a low bottle breakage rate. Linear tracking filling method, using stainless steel pump or ceramic pump for filling measurement, with high filling accuracy; During the filling process, nitrogen can be added before and after to fully ensure the filling quality. The equipment has functions such as no bottle, no filling, etc.
