Description

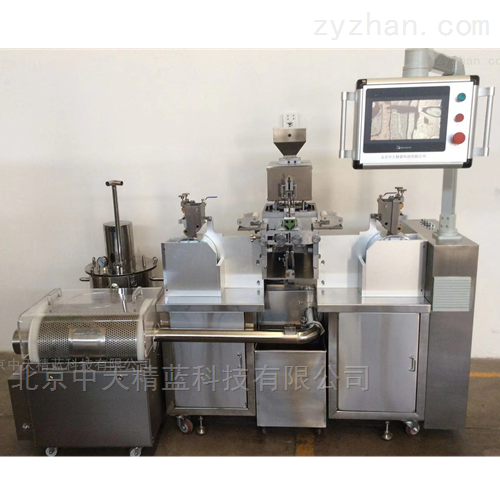

JLR-50 (100) – II Universal Soft Capsule Machine Desktop Soft Capsule Machine

Main purpose and function introduction:

Mainly providing research and development services for new products.

Research and variety production of soft capsule technology in the fields of food, health products, new dosage forms of traditional Chinese medicine, and chemical engineering.

Technical parameters

The soft capsule host (pill making system) adopts an intelligent computer control system and PLC touch screen operation (one set of molds)

Power supply system: three-phase AC220V50HZ0.2KW

Rubber wheel diameter: D220mm

Rubber wheel motor equipment power: 0.25kwx2

Cooling system: water-cooled

Equipment weight: 260kg

Production capacity: 15000 pieces/hour

Roll mold size: Φ 64 × 65 (100) mm

Roll mold speed: 0-5rpm variable frequency variable speed

Fluid single column plug supply: 0-1.5ml

Finished capsule loading accuracy: ± 1%

Equipment power: 1kW

(2) Drying machine (shaping system)

Drying cage size: φ 320x450mmX2

Drying cage speed: 21.6rpm

Equipment power: 0.09KwAc220V

Fan power: AC220V 50HZ 40W

(3) Glue bucket (glue system)

Heating power: 1.5KwAc220V

Mixing power: 0.1KwAc220V

Outer diameter: ￠ 540 × 1200 mm

Effective capacity inside the bucket: 30L

Allowable pressure inside the bucket: -0.09MPa~+0.06MPa

(4) Drying tray (PE product)

Cart size: 750 × 450 × 100 (mm)

Tray size: 730 × 430 × 70 (mm)

Quantity: 20 pieces

(5) Water chiller

Dimensions: 900 * 570 * 560mm
