Description

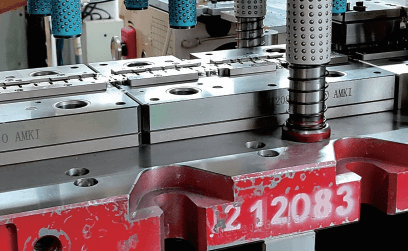

The in mold welding production line can complete the welding process in milliseconds. Two types of products can be folded together after stamping in the stamping mold, and welding can be completed in the mold. The metal strip can be self-assembled in the mold and then welded in the mold. The entire device not only eliminates the subsequent assembly process, but also greatly improves production efficiency, ensures yield, and greatly saves the subsequent investment of production personnel, site, and equipment. Widely used in the field of in mold welding in the 3C industry.

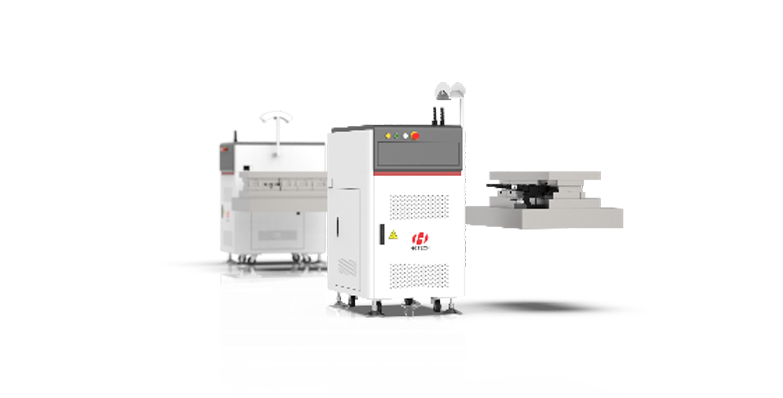

Equipment model
LWF150QG2
output power
150W
Precision linear module
±0.02mm

Product advantages
01
Using diffractive optics to achieve multi-point welding while ensuring maximum laser utilization efficiency
02
The welding joint design is compact and has undergone seismic design, which meets the characteristics of the application scenario
03
In mold welding reduces subsequent processes
04
The machine has a long service life, stable laser output power, high reliability, and can work continuously in harsh working conditions. The laser is maintenance free for 100000 hours
05
Compact equipment size, convenient for handling and on-site automation assembly, saving production space
Technical Parameter
Main technical parameters of the project
Laser parameter equipment model LWF150QG2
Average output power 150W
Modulation frequency range 0Hz ≤ F ≤ 2500Hz
Single point pulse maximum energy 15J
Customizable separation spacing (3 splitters)
Precision linear module ± 0.02mm
Optical output characteristics: Minimum focused spot diameter F=100mm (standard), F=125mm (optional) 0.2-0.4mm
Internal circulation air cooling using environmental cooling method
Power supply specification 220V ± 10%, 50/60Hz
