Description

Detailed Introduction
Brand Zhongtian Jinglan, produced domestically
New and old products, brand new products, small in size
Fully automated degree

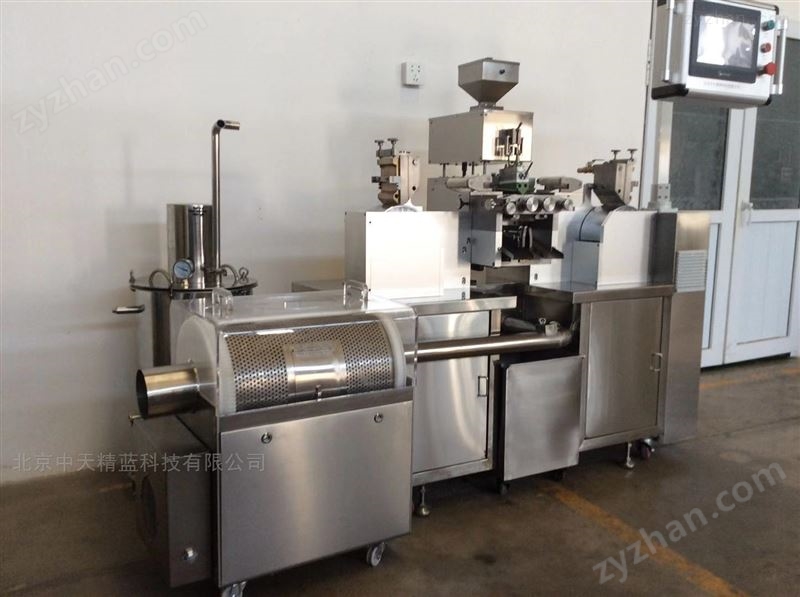

JLR-50 High Efficiency Soft Capsule Machine
JLR-50 (100) desktop soft capsule machine
Main purpose and function introduction:
Mainly providing research and development services for new products.
Research on soft capsule technology and variety trial production in the fields of food, health products, new dosage forms of traditional Chinese medicine, and chemical engineering.
Demonstration teaching and learning of operational techniques in universities.
Technical Parameter
Desktop soft capsule host (pill making system) adopts PLC touch screen human-machine interface to control LCD display (new model: ZL2013 2 0050873.4)
(One set of molds)
Power supply system: three-phase AC220V50HZ
Production capacity: 8000 pieces/hour (50 types) 16000 pieces/hour (100 types)
Roll mold size: Φ 64 × 65mm, Φ 64 × 100mm
Roll mold speed: 0-5rpm variable frequency control
Fluid single column plug supply: 0-2ml
Finished capsule loading accuracy: ± 1%
Equipment power: 3.6kW
(2) Drying tray (PE product)
Cart size: 750 × 550 × 100 (mm)
Tray size: 700 × 500 × 50 (mm)
Quantity: 10 pieces

(3) Colloid mill
Fineness: 20-70 microns
Speed: 3200 revolutions per minute

(4) Forming cage (forming system)
Equipment power: 0.09KwAc220V
Fan power: AC220V 50HZ 40W
Drying cage size: φ 320x450mm
Drying cage speed: 21rpm
(5) Work platform table (stainless steel 304 product)
Dimensions: 1200 * 600 * 600
(6) Glue tank (glue system) (equipped with one experimental water ring vacuum pump and one oil-free low-noise air compressor)
Mixing power: 0.1KwAc220V
Outer diameter: ￠ 400 × 800 mm
Effective capacity inside the bucket: 30L
Allowable pressure inside the bucket: -0.09MPa~+0.06MPa
Heating power: 1.5KwAc220V

(7) Water chiller
Cooling temperature: -5-16 ° C
Power: 1.1kw
JLR-50 High Efficiency Soft Capsule Machine
In response to the current requirements for the modification and deep development of soft capsule varieties in China to improve technological content, a pure desktop experimental II soft capsule machine has been specially launched, providing a good platform for pharmaceutical research institutions to develop new varieties of soft capsules and innovative improvements in new traditional Chinese medicine formulations.
